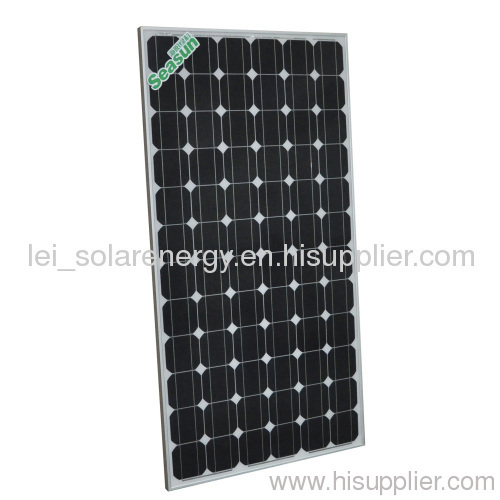

195W MONO SOLAR PANELS
| Price: | 0.5~0.7 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Jiangsu, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Solar Cell:Monocrystalline 125mm*125mm
No.of cells:72
Weight:15.8KG
Frame:Anodized aluminum alloy
Junction box:IP67 rated
| STC | HYM195W | HYM190W | HYM185W | HYM180W |
| Optimum Operation Voltage(Vmp) | 36.6V | 36.5V | 36.2V | 36V |
| Optimum Operation Current(Imp) | 5.33A | 5.21A | 5.11A | 5A |
| Open-Circuit Voltage(Voc) | 45.4V | 45.2V | 45V | 44.8V |
| Short-Circuit Current(Isc) | 5.69A | 5.62A | 5.41A | 5.29A |
| Maximum Power at STC(Pmax) | 195W | 190W | 185W | 180W |
| Module Efficiency | 15.3% | 14.9% | 14.5% | 14.1% |
| Operating Temperature | -40℃to +85℃ | -40℃to +85℃ | -40℃to +85℃ | -40℃to +85℃ |
| Maximum System Voltage | 1000VDC | 1000VDC | 1000VDC | 1000VDC |
| Maximum Series Fuse Rating | 15A | 15A | 15A | 15A |
| Power Tolerance | 0/+5W | 0/+5W | 0/+5W | 0/+5W |
